Plot residence patches to compare two versions of parameters for one tag — atl_compare_res_patch

Generates a side-by-side ggplot2 showing residence patches from two versions of processed tracking data (data_v1 and data_v2) for a single tag, including movement paths, patch durations, and annotated summaries. Useful for reviewing changes in patch detection between processing versions.

Usage

atl_compare_res_patch_plot(
  data_v1,
  data_v2,
  tag,
  change,
  patch_v1,
  patch_v2,
  time_buffer = 600,
  speed_threshold = 3,
  point_size = 1,
  point_alpha = 0.9,
  path_linewidth = 0.5,
  path_alpha = 0.9,
  patch_label_size = 4,
  patch_label_padding = 1,
  patch_alpha = 0.7,
  element_text_size = 11,
  buffer_res_patches = 20,
  buffer_bm = 250,
  water_fill = "white",
  water_colour = "grey80",
  land_fill = "#faf5ef",
  land_colour = "grey80",
  mudflat_colour = "#faf5ef",
  mudflat_fill = "#faf5ef",
  mudflat_alpha = 0.6,
  filename = NULL,
  png_width = 3840,
  png_height = 2160
)

Arguments

data_v1: A data.table containing tracking data from version 1. Must include the columns: tag, x, y, time, datetime, and patch, as created by atl_res_patch(). Optionally species and tideID.
data_v2: A data.table containing tracking data from version 2. Must include the same columns as data_v1.
tag: Tag ID to subset and plot.
change: Character describing the type of change between versions (e.g. "gained", "lost", "split", "merge"). Used for plot only..
patch_v1: A comma-separated character string of patch IDs from version 1 to highlight (e.g. "1,2,3"). Use NA if no patches exist in v1.
patch_v2: A comma-separated character string of patch IDs from version 2 to highlight (e.g. "1,2,3"). Use NA if no patches exist in v2.
time_buffer: Numeric. Seconds to extend the time window around the focal patches (default: 600).
speed_threshold: Speed threshold in m/s for colour scale of movement speed (default: 3 m/s).
point_size: Size of plotted points (default: 1).
point_alpha: Transparency of points (default: 0.9).
path_linewidth: Line width of movement paths (default: 0.5).
path_alpha: Transparency of movement paths (default: 0.9).
patch_label_size: Font size for patch labels (default: 4).
patch_label_padding: Padding for patch labels (default: 1).
patch_alpha: Alpha for patch polygons (default: 0.7).
element_text_size: Font size for axis and legend text (default: 11).
buffer_res_patches: A numeric value (in meters) specifying the buffer around the polygon of each residence patch (default: 20).
buffer_bm: Map buffer size in meters (default: 250).
water_fill: Water fill colour (default: "white").
water_colour: Water border colour (default: "grey80").
land_fill: Land fill colour (default: "#faf5ef").
land_colour: Land border colour (default: "grey80").
mudflat_colour: Mudflat border colour (default: "#faf5ef").
mudflat_fill: Mudflat fill colour (default: "#faf5ef").
mudflat_alpha: Mudflat transparency (default: 0.6).
filename: Character (or NULL). If provided, the plot is saved as a .png file to this path and filename; otherwise the plot is returned.
png_width: Width of saved PNG in pixels (default: 3840).
png_height: Height of saved PNG in pixels (default: 2160).

Value

A ggplot object or a saved PNG file.

Details

Made to plot results of atl_compare_res_patch_summary(). The N pos, N patches and T in patches are only based on the patches of interest. By setting time_buffer other patches (or parts within the buffer) will be shown in the plot if they are within the period.

Author

Johannes Krietsch

Examples

# packages
library(tools4watlas)
library(foreach)

# load example data
data <- data_example

# run atl_res_patch with two different parameter sets
data_v1 <- atl_res_patch(
  data[tag == "3038"],
  max_speed = 3, lim_spat_indep = 75, lim_time_indep = 180,
  min_fixes = 3, min_duration = 120
)
data_v2 <- atl_res_patch(
  data[tag == "3038"],
  max_speed = 5, lim_spat_indep = 75, lim_time_indep = 180,
  min_fixes = 3, min_duration = 120
)

# change summary
change_summary <- atl_compare_res_patch_summary(data_v1, data_v2)
#> === Patch changes summary ===
#> Lost    (v1 patches gone in v2) : 0
#> Gained  (new patches in v2)     : 1
#>
#> Splits  (one v1 -> multiple v2): 0
#> Merges  (multiple v1 -> one v2): 2
#>

# plot specific change
i <- 1

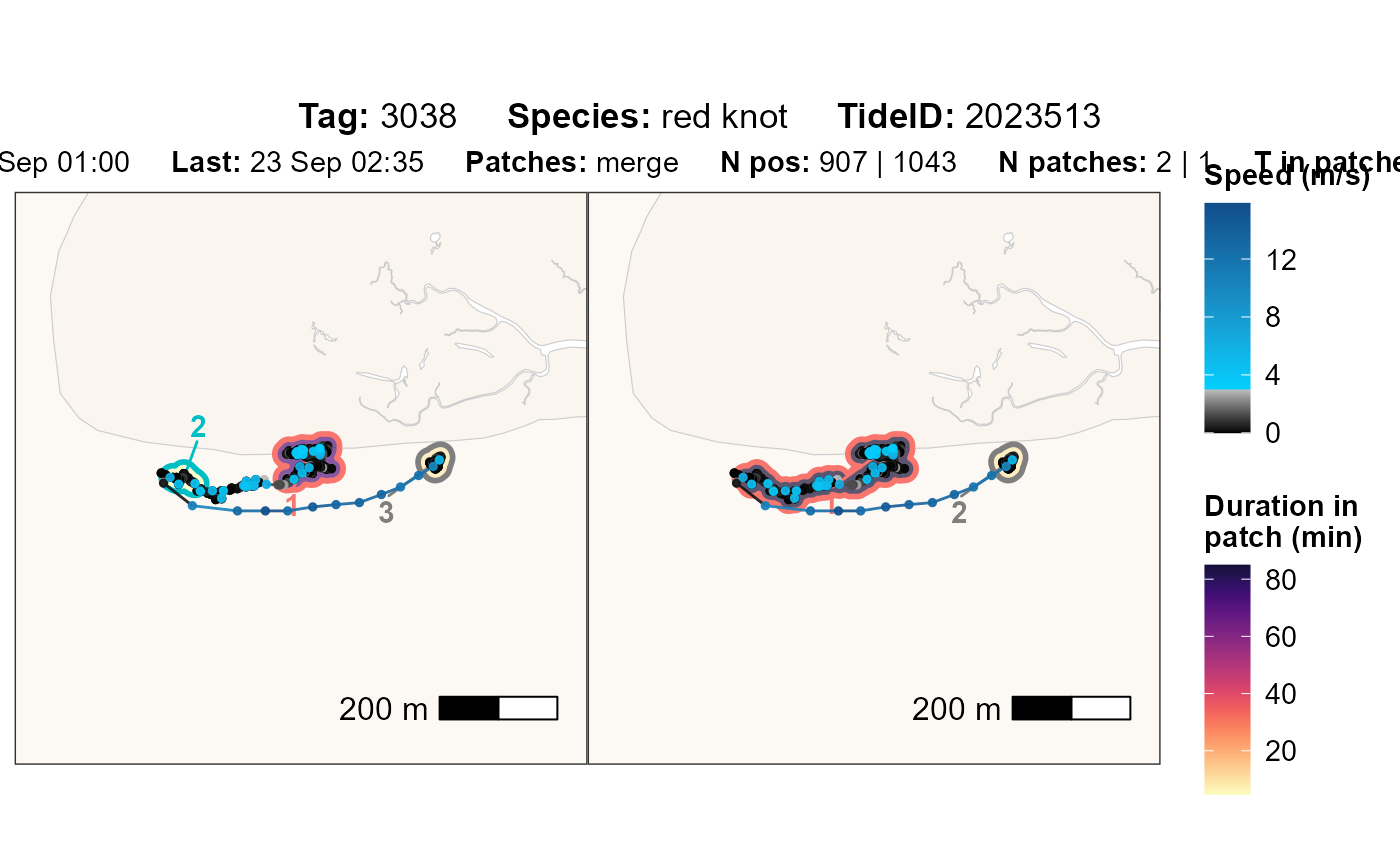

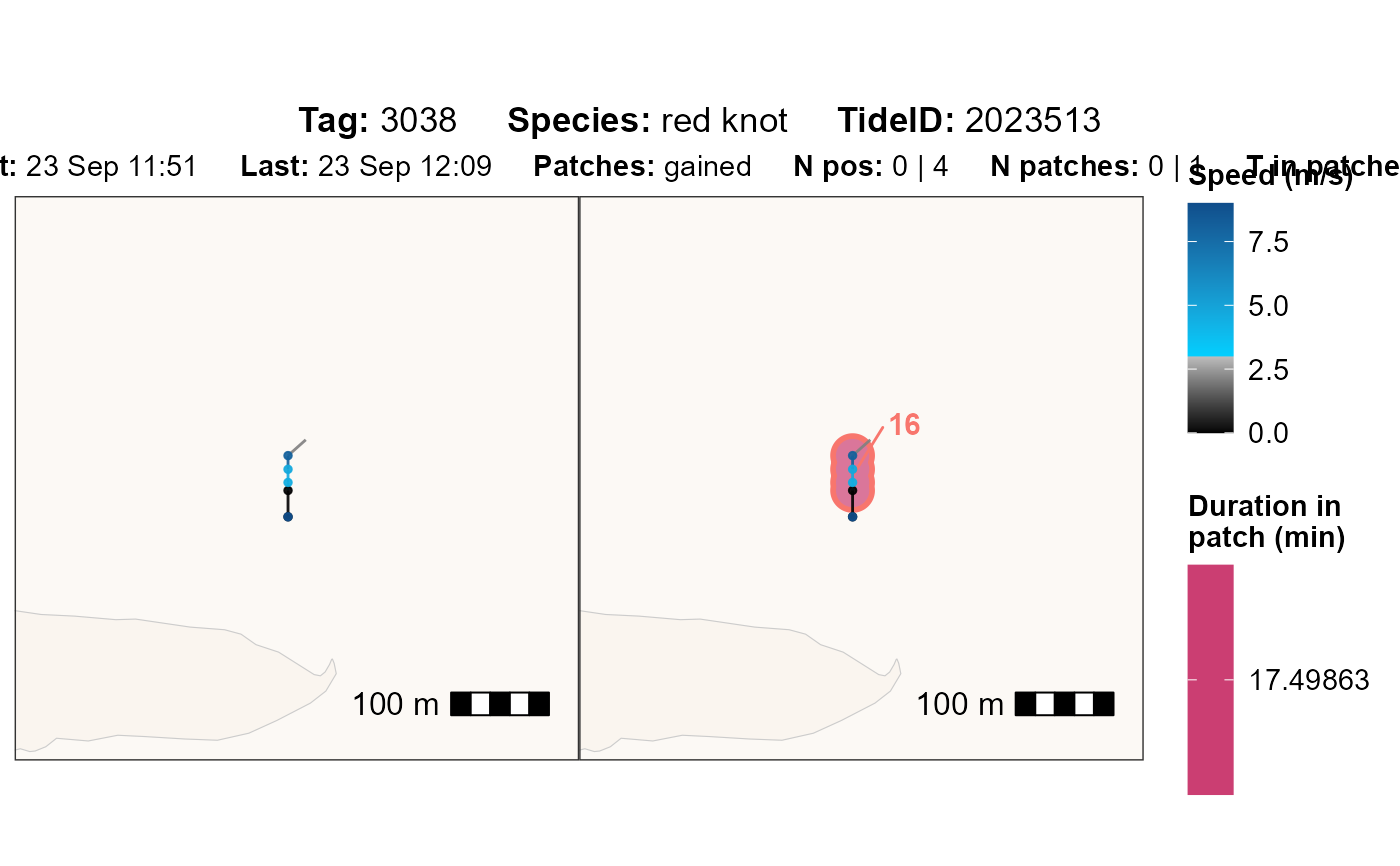

atl_compare_res_patch_plot(
  data_v1 = data_v1,
  data_v2 = data_v2,
  tag = change_summary$tag[i],
  change = change_summary$change[i],
  patch_v1 = change_summary$patch_v1[i],
  patch_v2 = change_summary$patch_v2[i]
)


# plot all changes in loop
# for many changes, it makes sense to set a filename to save the plots

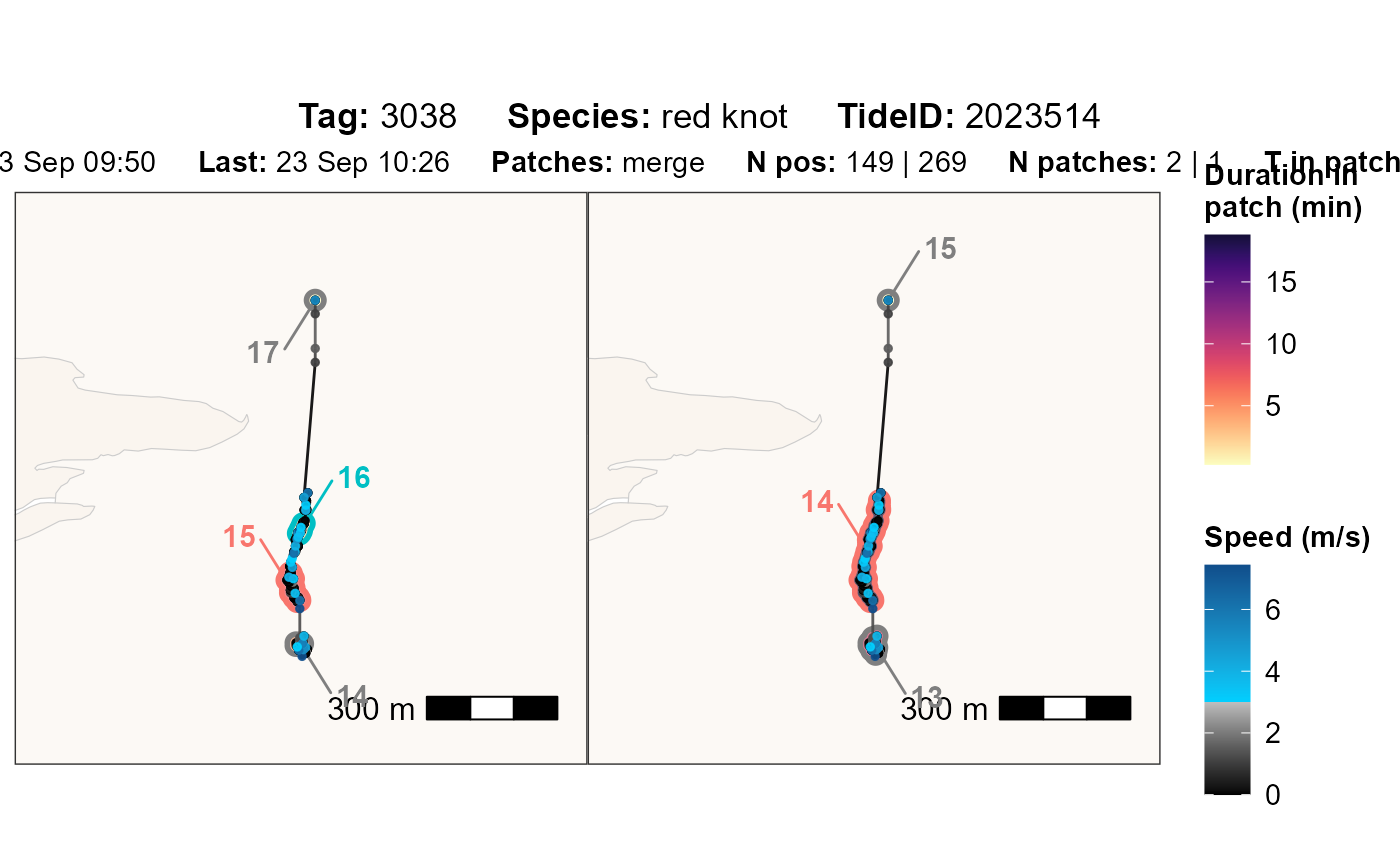

foreach(i = 1:nrow(change_summary)) %do% {
  atl_compare_res_patch_plot(
    data_v1 = data_v1,
    data_v2 = data_v2,
    tag = change_summary$tag[i],
    change = change_summary$change[i],
    patch_v1 = change_summary$patch_v1[i],
    patch_v2 = change_summary$patch_v2[i]
  )
}
#> [[1]]

#>
#> [[2]]

#>
#> [[3]]

#>
